ASP.NET MVC 1.0 Release Candidate Now Available
Today we shipped the ASP.NET MVC 1.0 Release Candidate (RC). Click here to download it (note: the link just went live so if it isn’t working wait a few minutes for the server you are hitting to refresh). It works with both Visual Studio 2008 and Visual Web Developer 2008 (which is free).
Today’s RC is the last public release of ASP.NET MVC that we’ll ship prior to the final “1.0” release. We expect to ship the final ASP.NET MVC 1.0 release next month.
In addition to bug fixes, today’s build includes several new features. It also includes some refinements to existing features based on customer feedback. Please read the release notes that ship with the ASP.NET MVC download for full details on all changes. The release notes include detailed instructions on how to upgrade existing applications built with the ASP.NET MVC Beta to the RC.
Visual Studio Tooling Improvements
The RC includes several new Visual Studio tooling features (above and beyond the existing support in the beta – which I won’t cover here). These features include:
Add Controller Command

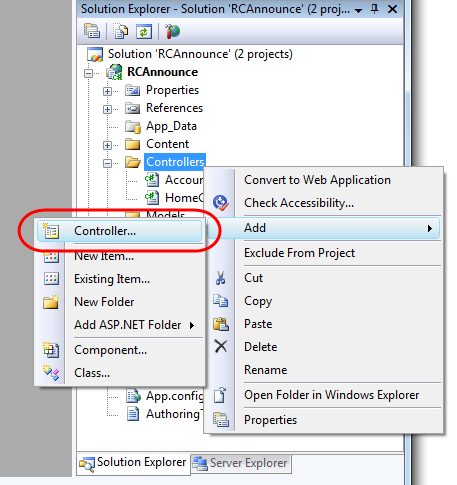

You can now type Ctrl-M, Ctrl-C within an ASP.NET MVC project, or right-click on the /Controller folder and choose the “Add->Controller” context menu item to create new controller classes:

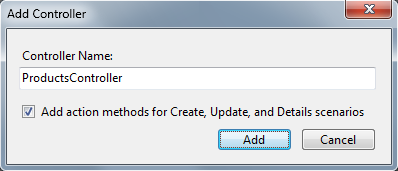

This will cause an “Add Controller” dialog to appear that allows you to name the Controller to create, as well as optionally indicate whether you wish to automatically “scaffold” common CRUD methods:
Clicking the “Add” button will cause the controller class to be created and added to the project:
Add View Command

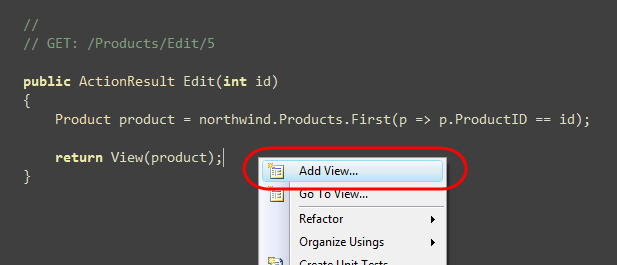

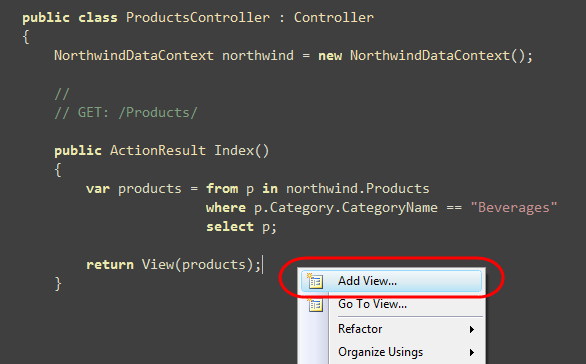

You can now type Ctrl-M, Ctrl-V within a Controller action method, or right-click within an action method and choose the “Add View” context menu item to create new view templates:
This will cause an “Add View” dialog to appear that allows you to name and create a new view (it is pre-populated with convention-based options). It allows you to create “empty” view templates, or automatically generate/scaffold view templates that are based on the type of object passed to the view by the Controller action method. The scaffolding infrastructure uses reflection when creating view templates – so it can scaffold new templates based on any POCO (plain old CLR object) passed to it. It does not have a dependency on any particular ORM or data implementation.

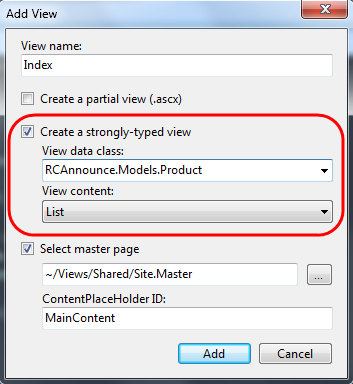

For example, below we are indicating that we want to scaffold a “List” view template based on the sequence of Product objects we are passing from our action method above:

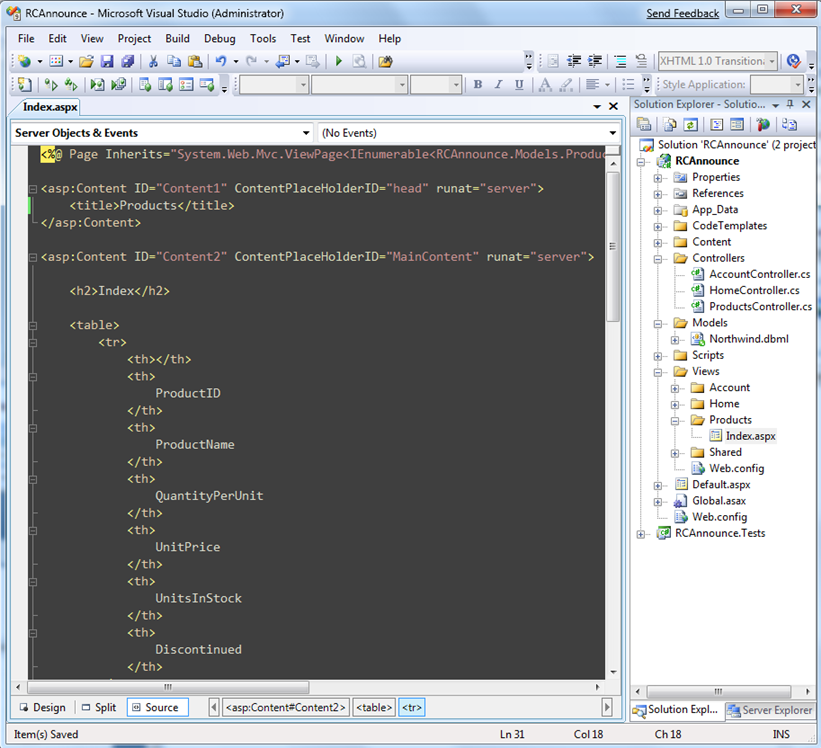

Clicking the “Add” button will cause a view template to be created for us within the \Views\Products\ directory with a default “scaffold” implementation:

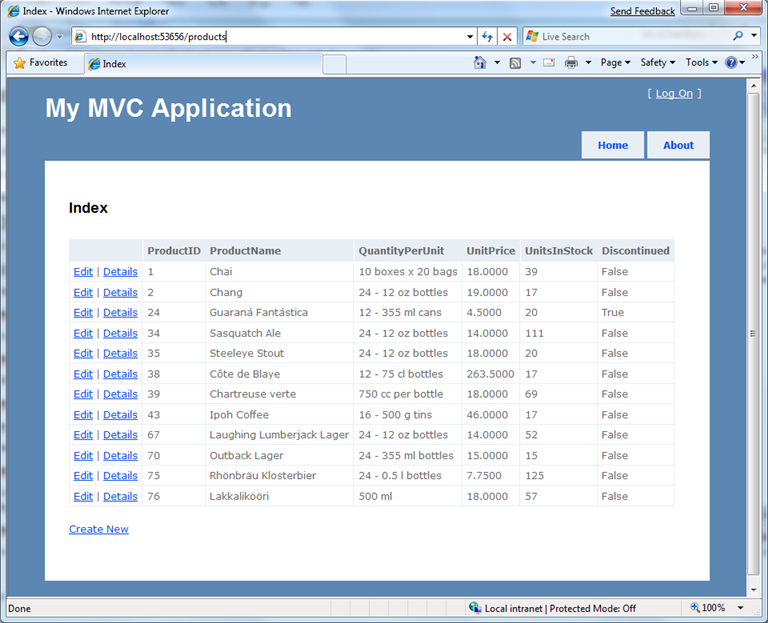

We can then run our application and request the /products URL within our browser to see a listing of our retrieved products:
The RC ships with a number of built-in scaffold templates: “Empty”, “List”, “Details”, “Edit” and “Create” (you can also add your own scaffold templates – more details on this in a moment).
For example, to enable product editing support we can implement the HTTP-GET version of our “Edit” action method on our Products controller like below and then invoke the “Add View” command:

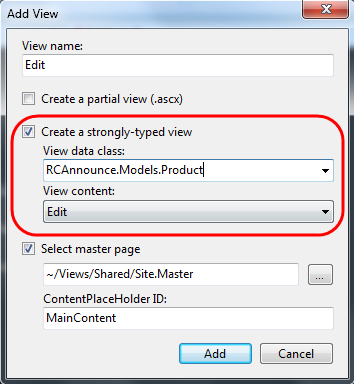

Within the “Add View” dialog we can indicate we are passing a “Product” object to our view and choose the “Edit” template option to scaffold it:

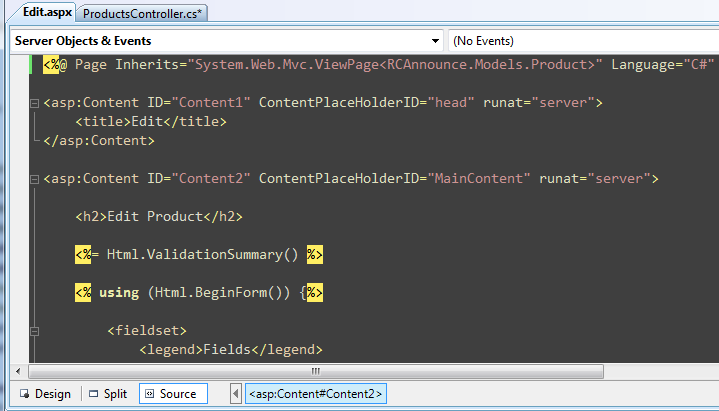

Clicking the “Add” button will cause an edit view template to be created with a default scaffold implementation within the \Views\Products\ directory:

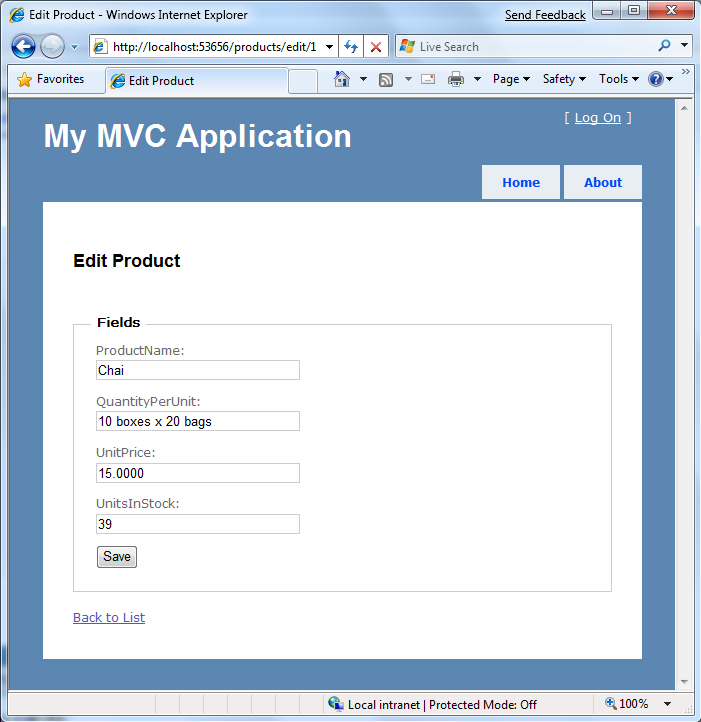

We can then run our application and request the /products/edit/1 URL within our browser to edit the Product details:

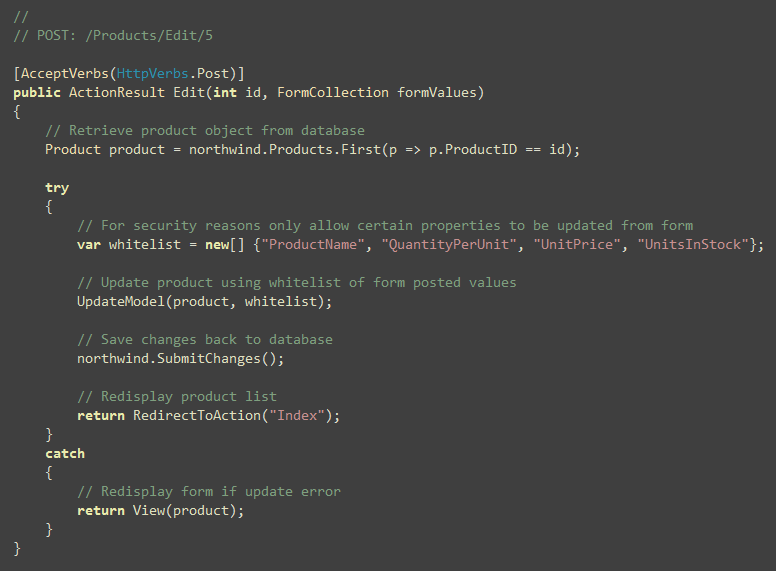

To save edit changes we can implement the HTTP-POST version of our “Edit” action method on our Products controller:

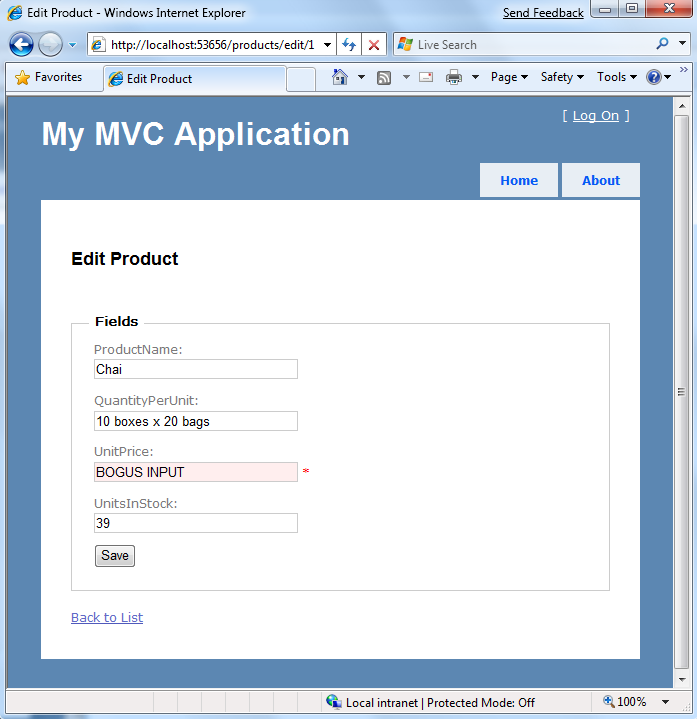

Notice in the code above how in the case of an error (for example: someone enters a bogus string for a number value) we redisplay the view. The “edit” and “create” scaffold templates contain the HTML validation helper methods necessary to preserve user input and flag invalid input elements in red when this happens:
You’ll rarely end up using a scaffold-created template exactly as-is, and often will end up completely replacing it. But being able to get an initial implementation up and running quickly, and having an initial view template for your scenario that you can then easily tweak is really useful.
Because the scaffold infrastructure supports scaffolding views against any plain-old CLR object, you can use it with both domain model objects (including those mapped with LINQ to SQL, LINQ to Entities, nHibernate, LLBLGen Pro, SubSonic, and other popular ORM implementations) as well as to create scaffolds with custom Presentation Model/ViewModel classes.
Adding and Customizing Scaffold Templates
ASP.NET MVC’s scaffolding infrastructure is implemented using Visual Studio’s built-in T4 templating architecture (Scott Hanselman has a nice blog post on T4 here).
You can customize/override any of the built-in ASP.NET MVC scaffold template implementations. You can also create additional scaffold templates (for example: the “ScottGu Crazy Look” scaffold option) and have them be displayed as options within the “Add View” dialog.
To customize/add scaffold templates at the machine-wide level, open the “C:\Program Files\Microsoft Visual Studio 9.0\Common7\IDE\ItemTemplates\CSharp\Web\MVC\CodeTemplates” folder:

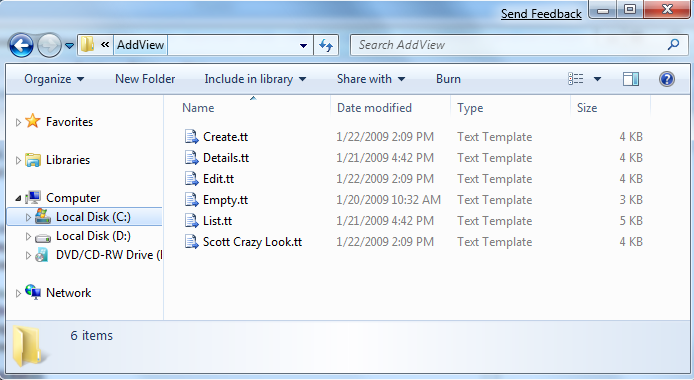

The “AddController” sub-folder contains the scaffold template for the “Add Controller” dialog. The “AddView” sub-folder contains the scaffold templates for the “Add View” dialog:
The scaffold templates populated within the “Add View” dialog are simply text files that have the “.tt” file-name extension. These “.tt” text files contain inline C# or VB code that executes when the template is selected.
You can open and edit any of the existing files to customize the default scaffolding behavior. You can also add new “.tt” template files – like I have above with the “Scott Crazy Look.tt” file. When you add a new template file the “Add View” dialog will be updated to automatically include it in the list of available scaffold options:
In addition to customizing/adding template files at the machine level, you can also add/override them at the individual project level. This also enables you to check-in the templates under source control and easily use them across a team.

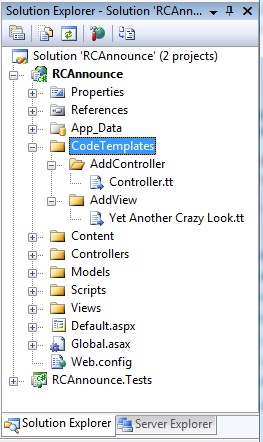

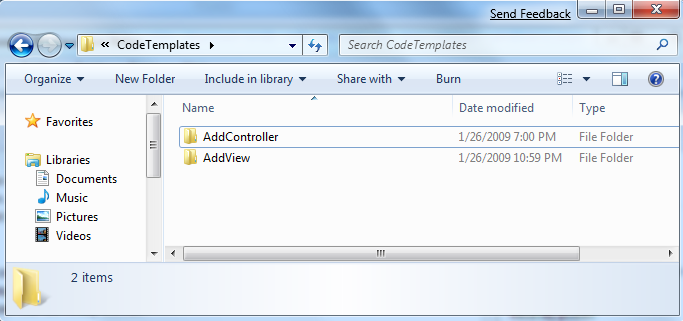

You can customize the scaffold templates at a project level by adding a “CodeTemplates” folder underneath your project. You can then have “AddController” and “AddView” sub-folders within it:
You can override any of the default machine-wide templates simply be adding a “.tt” file with the same name to the project. For example, above we are overriding the default “Controller.tt” scaffold template used in “Add Controller” scenarios.

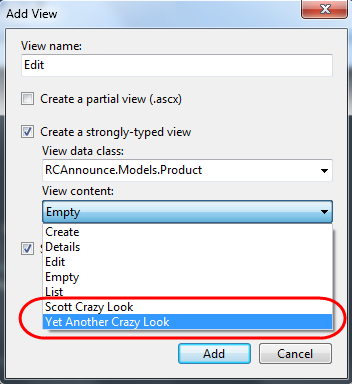

You can add new view-template scaffold files to the list by placing them within the “AddView” folder. For example, above we added a “Yet Another Crazy Look.tt” view template to our project. When we use the “Add View” dialog we’ll now see a union of the templates defined at the machine and project level:
Note: When you add “.tt” templates under the \CodeTemplates folder make sure to set the “Custom Tool” property of each of the “.tt” template files to an empty string value within the property grid (otherwise you’ll get an error trying to run it). You might also need to close and reopen the project to clear a spurious error from the error list. We’ll be publishing more blog posts that cover creating/customizing scaffolding templates shortly.
Go To Controller / Go To View
The RC build now supports the ability to quickly navigate between the Controllers and Views within your projects.

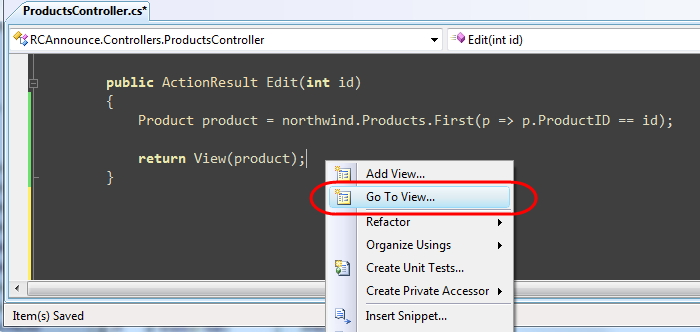

When your cursor is within a Controller action method you can type Ctrl-M, Ctrl-G to quickly navigate to its corresponding view template. You can also perform this same navigation jump by right-clicking within the action method and selecting the “Go To View” menu option:
In the example above we used the “Go To View” command within the “Edit” action method of the ProductsController class. This will cause the \Views\Products\Edit.aspx view template to be opened and have the default focus within VS:

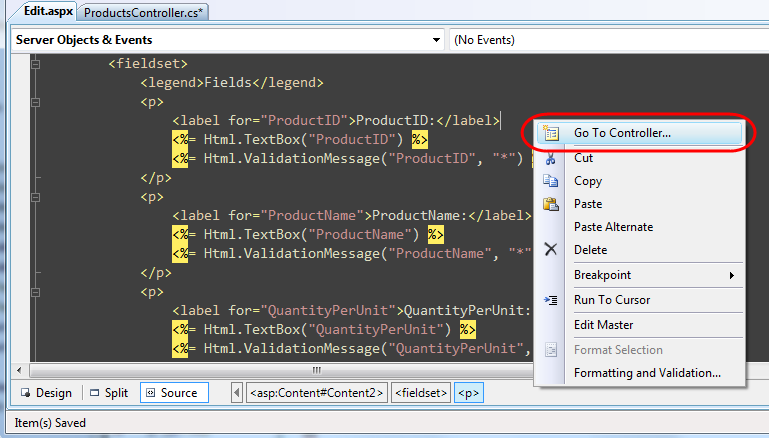

Within view templates you can also now type Ctrl-M, Ctrl-G to quickly navigate to the view’s corresponding Controller class. You can also perform this navigation jump by right-clicking within the view template and selecting the “Go To Controller” menu option:
MSBuild Task for Compiling Views
By default when you do a build on an ASP.NET MVC project it compiles all code within the project, except for the code within view template files. With the ASP.NET MVC Beta you had to roll your own MSBuild task if you wanted to compile the code within view templates. The ASP.NET MVC RC build now includes a built-in MSBuild task that you can use to include views as part of the project compilation process. This will verify the syntax and code included inline within all views, master pages, and partial views for the application, and give you build errors if it encounters any problems.
For performance reasons we don't recommend running this for quick compiles during development, but it is convenient to add to particular build configuration profiles (for example: staging and deployment) and/or for use with Build or CI (continuous integration) servers. Please review the release notes for the steps to enable this.
View Refactoring Support
The names of the files and folders under the \Views application sub-folder will now automatically be updated when you perform controller class rename or action method rename using the “Rename” refactoring command in VS 2008. VS 2008 will apply the standard convention-based naming pattern to existing view files/folders when the Controller class is updated.
The RC build includes a number of view-specific enhancements that were incorporated based on feedback during the preview releases.
Views without Code-Behind Files
Based on feedback we’ve changed view-templates to not have a code-behind file by default. This change helps reinforce the purpose of views in a MVC application (which are intended to be purely about rendering and to not contain any non-rendering related code), and for most people eliminates unused files in the project.
The RC build now adds C# and VB syntax support for inheriting view templates from base classes that use generics. For example, below we are using this with the Edit.aspx view template – whose “inherits” attribute derives from the ViewPage<Product> type:
One nice benefit of not using a code-behind file is that you'll now get immediate intellisense within view template files when you add them to the project. With previous builds you had to do a build/compile immediately after creating a view in order to get code intellisense within it. The RC makes the workflow of adding and immediately editing a view compile-free and much more seamless.
Important: If you are upgrading a ASP.NET MVC project that was created with an earlier build make sure to follow the steps in the release notes – the web.config file under the \Views directory needs to be updated with some settings in order for the above generics based syntax to work.
With previous builds of ASP.NET MVC, you accessed the strongly typed model object passed to the view using the ViewData.Model property:
The above syntax still works, although now there is also a top-level "Model" property on ViewPage that you can also use:
This property does the same thing as the previous code sample - its main benefit is that it allows you to write the code a little more concisely. It also allows you to avoid using the ViewData dictionary in cases where you want the view template to only interact with the strongly-typed model passed to it.
Setting the Title
The default master-page template added to new ASP.NET MVC projects now has an <asp:contentplaceholder/> element within its <head> section. This makes it much easier for view templates to control the <title> element of the HTML page rendered back – and not require the Controller to explicitly pass a “title” parameter to configure it (which was the default with previous ASP.NET MVC builds and we thought questionable from a responsibilities perspective).

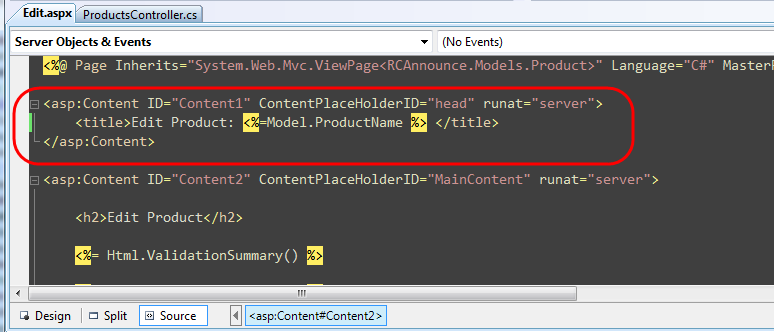

For example, to customize the <title> of our Edit view to include the current product name we can now add the below code to our Edit.aspx template to drive the title directly off of the model object being passed the view:

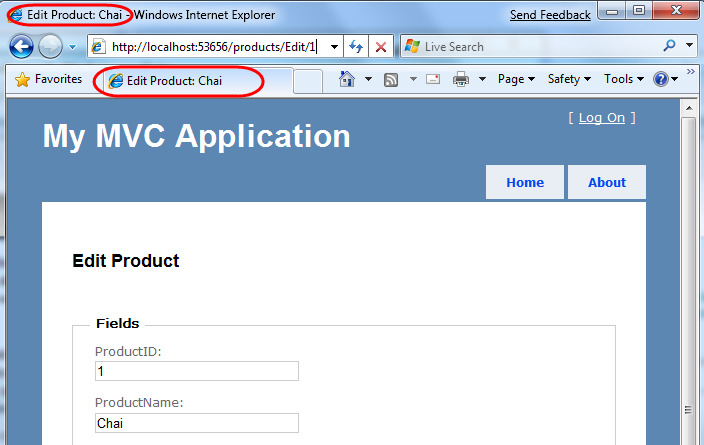

The above code will then cause the browser to render the title using the Product name at runtime:
In addition to setting the <title> element, you can also use the above approach to dynamically add other <head> elements at runtime. Another common scenario this is useful with is configuring model/view specific <meta/> elements for search engine optimization.
Strongly Typed HTML/AJAX Helpers
One of the requests a few people have asked for is the ability to use strongly-typed expression syntax (instead of strings) when referring to the Model when using a View's HTML and AJAX helper objects.
With the beta build of ASP.NET MVC this wasn't possible, since the HtmlHelper and AjaxHelper helper classes didn't expose the model type in their signature, and so people had to build helper methods directly off of the ViewPage<TModel> base class in order to achieve this.

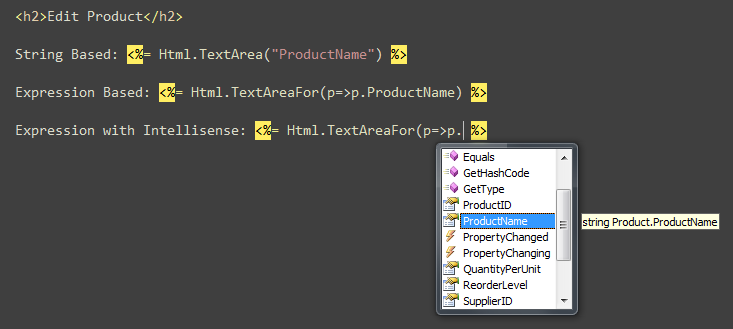

The ASP.NET MVC RC build introduces new HtmlHelper<TModel> and AjaxHelper<TModel> types that are exposed on the ViewPage<TModel> base class. These types now allow anyone to build strongly-typed HTML and AJAX helper extensions that use expression syntax to refer to the View's model. For example:
The HTML form helper extension methods in the core ASP.NET MVC V1 assembly still use the non-expression based string syntax. The “MVC Futures” assembly released today (which works with the RC) has a few initial implementations of expression-syntax based form helper methods. We are going to iterate on these a bit longer and then consider adding them into the ASP.NET MVC core assembly in the next release.
You can of course also add your own helper methods (using either strings or strongly-typed expressions). The built-in HTML/AJAX helper methods can also optionally be removed (because they are extension methods) if you want to replace or override them with your own
Form Post Improvements
The RC build includes a number of form-post specific enhancements:
[Bind(Prefix=””)] No Longer Required for Common Scenarios
The RC build no longer requires you to explicitly use a [Bind] attribute (or set its prefix value to “”) in order to map incoming form post parameters that do not have a prefix to complex action method parameters.

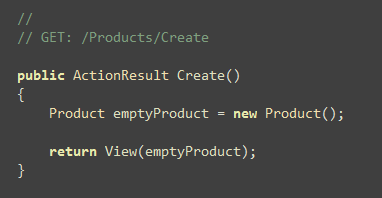

To see what this means, let’s implement the “Create” scenario for our ProductsController. We’ll begin by implementing the HTTP-GET version of our “Create” action method. We’ll do this with code below that returns a View based on an empty Product object:

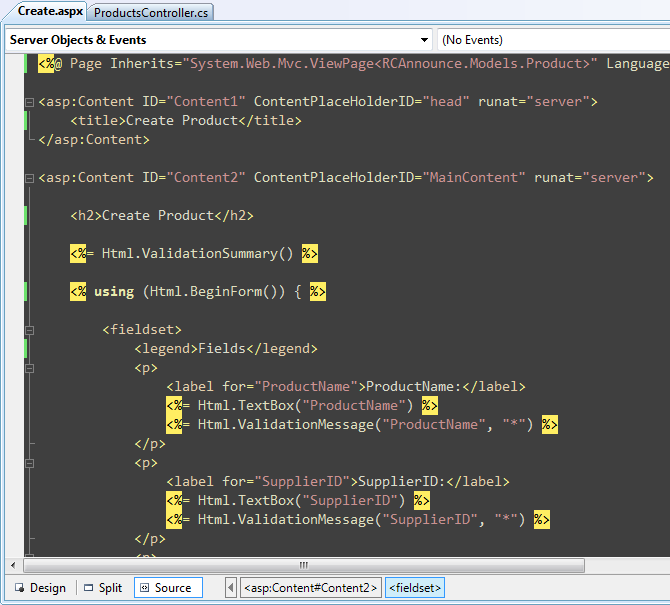

We can then right-click within our action method, choose the “Add View” command and scaffold a “create” view template that is based on a Product:

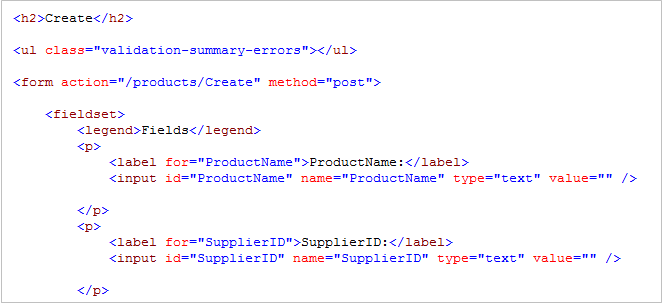

Notice above how our Html.TextBox() helper methods are referencing the “ProductName” and “SupplierID” properties on our Product object. This will generate HTML markup like below where the input “name” attributes are “ProductName” and “SupplierID”:

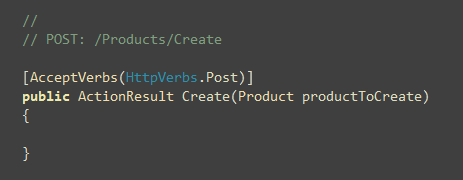

We can then implement the HTTP-POST version of our “Create” action method. We’ll have our action method take a Product object as a method parameter:
With the ASP.NET MVC Beta we would have had to add a [Bind(Prefix=””)] attribute in front of our Product argument above – otherwise the ASP.NET MVC binding infrastructure would have only looked for form post values with a “productToCreate.” prefix (for example: productToCreate.ProductName and productToCreate.SupplierID) and not found the submitted values from our form (which don’t have a prefix).
With the RC build, the default action method binders still first attempt to map a productToCreate.ProductName form value to the Product object. If they don’t find such a value, though, they now also attempt to map “ProductName” to the Product object. This makes scenarios where you pass in complex objects to an action method syntactically cleaner and less verbose. You can take advantage of this feature both when mapping domain objects (like our Product object above) as well as with Presentation Model/ViewModel classes (like a ProductViewModel class).

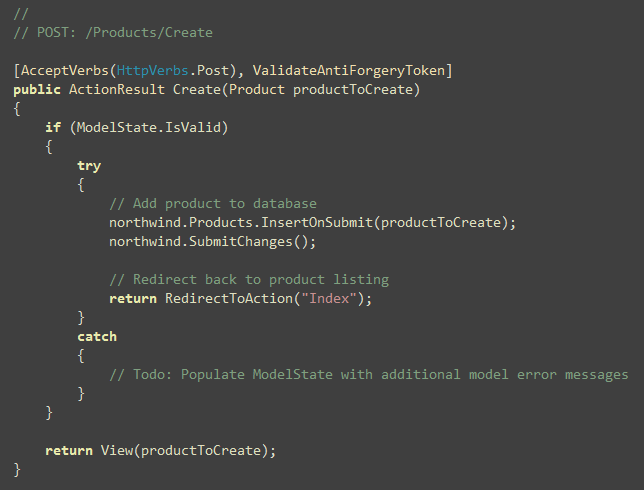

A completed implementation of our Create action method (including basic input type error handling) might look like below:

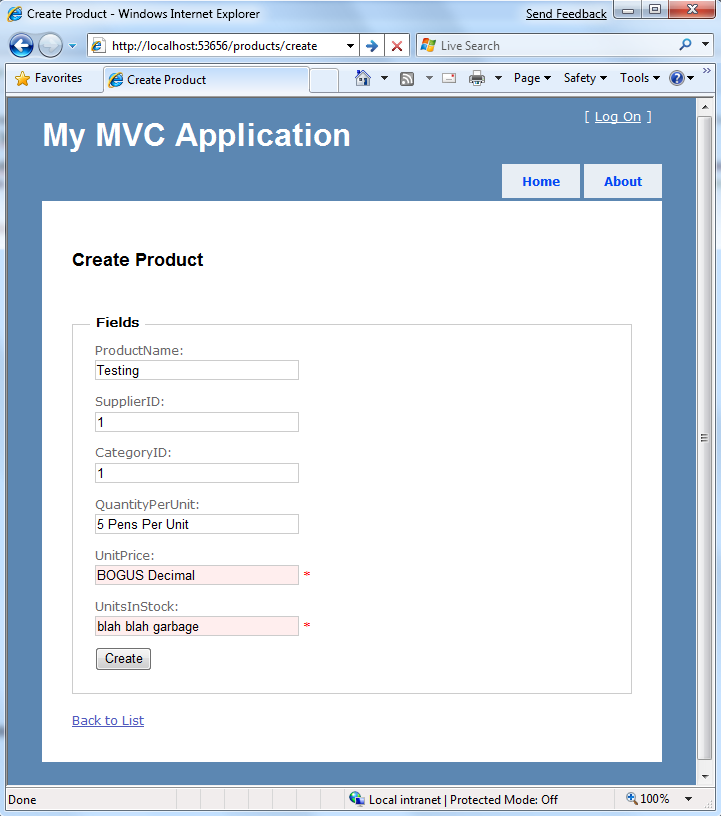

Now our create action will save the Product object if all values are entered correctly. When a user attempts to create a Product with invalid Product property values (for example: a string “Bogus” instead of a valid Decimal value), the form will redisplay and flag the invalid input elements in red:
ModelBinder API Improvements
The model binding infrastructure within the ASP.NET MVC Release Candidate has been refactored to add additional extensibility points to enable custom binding and validation schemes. You can read more about these details in the ASP.NET MVC RC release notes.
Model Binders can also now be registered for interfaces in addition to classes.
The default model binder with ASP.NET MVC now supports classes that implement the IDataErrorInfo interface. This enables a common approach to raise validation error messages in a way that can be shared across Windows Forms, WPF and now ASP.NET MVC applications.
Unit Testing Improvements
The ASP.NET MVC RC includes some significant improvements to unit testing:
ControllerContext changed to no longer derive from RequestContext
The RC build includes a refactoring of the ControllerContext class that significantly simplifies common unit testing scenarios. The ControllerContext class no longer derives from RequestContext and now instead encapsulates RequestContext and exposes it as a property. The properties of ControllerContext and its derived types are also now virtual instead of sealed – making it significantly easier to create mock objects.

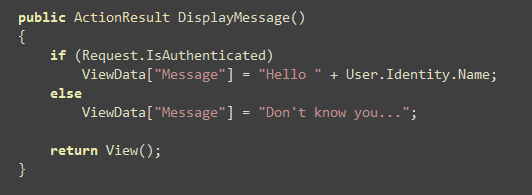

To see how this helps, let’s consider an action method like below that uses both the “Request” and “User” intrinsic objects:
Testing the above action method with previous ASP.NET MVC builds would have required mocking RequestContext and ControllerContext (with some non-obvious constructors that also brought in a RouteData object).

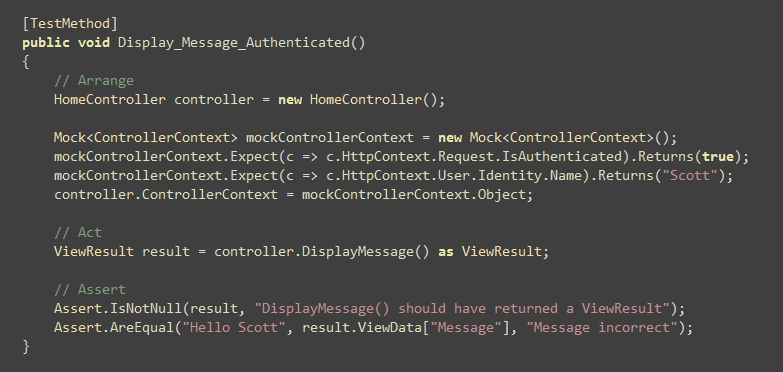

With the RC build we can now unit test it like below (using Moq to mock a ControllerContext for our Controller that allows us to simulate the Request.IsAuthenticated and User.Identity.Name properties):
The refactoring improvements made help out not just with testing Controller actions – but also help with testing filters, routes, custom actionresult types, and a variety of other scenarios.
AccountsController Unit Tests
The ASP.NET MVC Project Template included with the RC build now adds 25 pre-built unit tests that verify the behavior of the AccountsController class (which is a controller added to the project by default to handle login and account management scenarios). This makes refactoring/updating AccountsController easier. The AccountsController implementation has also been modified to more easily enable non-Membership Provider based credential systems to be integrated.
Cross Site Request Forgery (CSRF) Protection
Cross-site request forgery (CSRF) attacks (also referred to as XSRF attacks) cause users of a trusted browser agent to take unintended actions on a site. These attacks rely on the fact that a user might still be logged in to another site. A malicious Web site exploits this by creating a request to the original site (for example: by linking to a URL on the site using a <img src=””/> element on the hacker site). The request is made using the user’s browser and thus with the user’s authentication token and credentials. The attacker hopes that the user’s authentication or session cookie is still valid and if so, the attacker can sometimes take disruptive action. You can learn more about this hacking technique here.

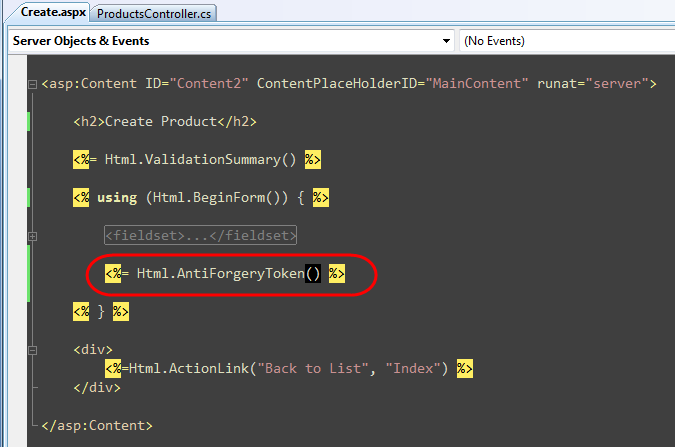

The ASP.NET MVC RC now includes some built-in CSRF protection helpers that can help mitigate CSRF attacks. For example, you can now use the Html.AntiForgeryToken() helper to render a hidden input token within forms:
This helper issues a HTTP cookie and renders a hidden input element into our form. Malicious web-sites will not be able to access both values.

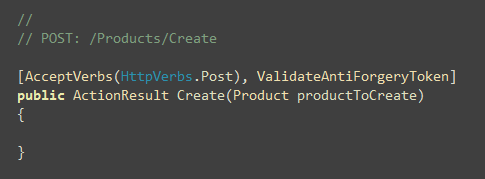

We can then apply a new [ValidateAntiForgeryToken] attribute onto any action method we want to protect:
This will check for the existence of the appropriate tokens, and prevent our HTTP-POST action method from running if they don’t match (reducing the chance of a successful CSRF attack).
File Handling Improvements
The ASP.NET MVC RC includes a number of file handling enhancements:
FileResult and File() helper method
The RC build adds a new FileResult class that is used to indicate that a file is being returned as an ActionResult from a Controller action method. The Controller base class also now has a set of File() helper methods that make it easy to create and return a FileResult.

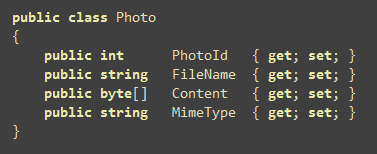

For example, let’s assume we are trying to build a photo management site. We could define a simple “Photo” class like below that encapsulates the details about a stored Photo:

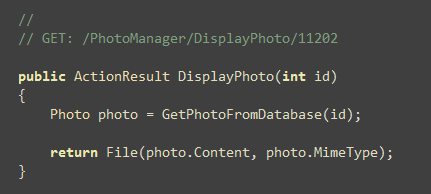

We could then use the new File() helper method like below to implement a “DisplayPhoto” action method on a PhotoManager controller that could be used to render the Photo out of a database store. In the code below we are passing the File() helper the bytes to render, as well as the mime-type of the file. If we pointed a <img src=””/> element at our action method URL the browser would display the photo inline within a page:

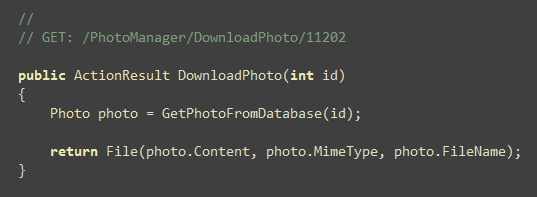

If we wanted an end-user to be able to download the photo and save it locally, we could implement a “DownloadPhoto” action method like below. In the code below we are passing a third parameter – which will cause ASP.NET MVC to set a header that causes the browser to display a “Save As…” dialog which is pre-populated with the filename we’ve supplied:

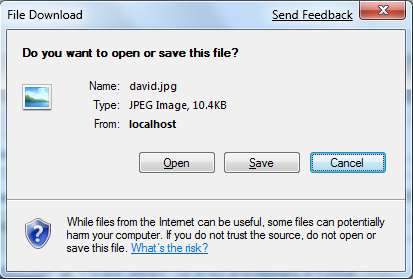

When a user clicks a link to the /PhotoManager/DowloadPhoto/1232 URL they’ll be prompted to save the picture:
File Uploading Support
The RC build also includes built-in model-binder support for uploaded files and multi-part mime content.

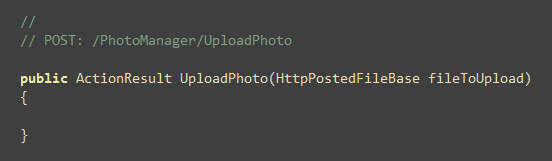

For example, we could have a <form> whose enctype attribute is set to “multipart/form-data” perform a post to the /PhotoManager/UploadPhoto URL. If a <input type=”file” name=”fileToUpload”/> element was within the form it would cause the file selected by the end-user to be passed to our action method as an HttpPostedFileBase object:
We could then use the HttpPostedFileBase object to get access to the raw bytes of the uploaded file, its mime-type, and optionally save it to a database or disk.
The ASP.NET MVC RC includes a number of AJAX enhancements:
jQuery Intellisense Files included within ASP.NET MVC Project Template

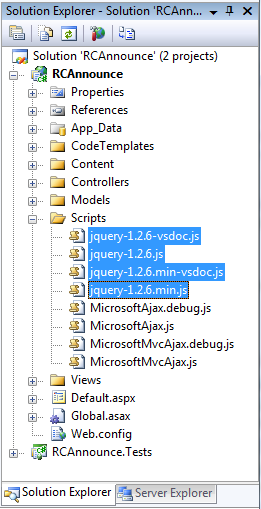

Newly created ASP.NET MVC projects now include both the standard jQuery library (both full and compressed versions), as well as the –vsdoc intellisense documentation file used by Visual Studio to provide richer intellisense support for it (you can learn more about this here):
We are pretty excited to be in the final “home stretch” of ASP.NET MVC V1. Please report any issues you find with the RC build as soon as possible so that we can get them resolved for the final release. The team plans to carefully monitor feedback over the next few weeks, and assuming no big issues come up ship the official V1 build next month.
Hope this helps,
